Electrical parameters

Input voltage: AC110V-220V, 50/60Hz

Rated power: 416W

Optical system

Light source model: 832* 0.5W 5730LED SMD lamp beads (ie 5.7mm*3.0mm) warm white / positive white / dual color temperature (optional)

Color Rendering Index (CRI) > 90 < 95

Color temperature: 3200k/5600K/3200-5600K (color temperature adjustable) optional

Beam angle: 120°

Effect

Dimming: 0~100% linear electronic dimming, easy to adjust color temperature.

Software and Control

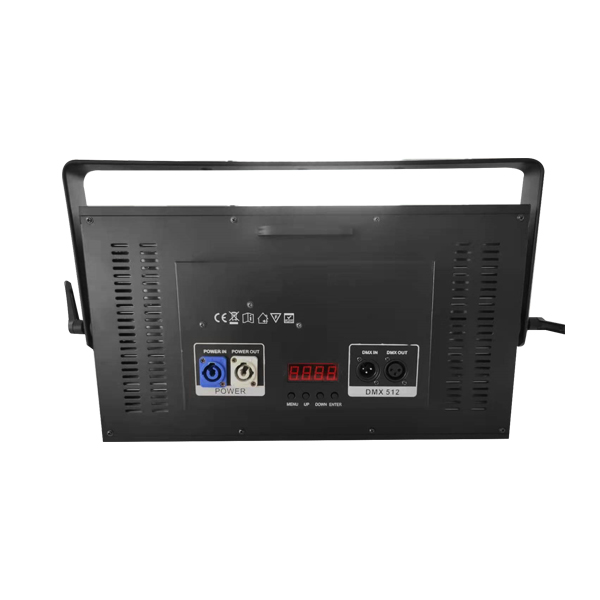

Signal interface: 3-pin XLR input/output

Control mode: DMX512, self-propelled, master-slave.

Control channel: 3CH (single color)/4CH (dual color)

Transmission protocol: DMX512

Display mode: LED digital display

Physical/Installation Characteristics

Protection class: IP20

Lamp volume: 500*305*100mm

Product Net Weight: 5.5Kg

Other functions

Heat dissipation design: The profile type radiator is used, which has the characteristics of good heat dissipation performance, no noise, and good energy saving effect. Fanless and completely silent design, as a representative of new energy-saving lamps, the LED panel light has ultra-thin, energy-saving, long life, high brightness, no radiation, no stroboscopic, the whole is in a completely sealed state, and the panel and the body are integrated. The whole machine adopts the chassis of aluminum profiles, the heat dissipation effect is good, and the service life will be longer. The lamp adopts high-brightness SMD lamp beads arranged in a large-area matrix, with high brightness and mute, which can meet the lighting requirements for indoor and outdoor film and television shooting.
